Tabernacle Baptist Church
Grove Avenue and Meadow Street
Hall organ, 1923, 3m/22r
GREAT
1. 16 Bourdon
2. 8 Open Diapason
3. 8 Clarabella
4. 8 Gamba
5. 8 Gross Flute
6. 4 Octave
7. Chimes (Echo)
SWELL
8. 16 Bourdon
9. 8 Diapason
10. 8 viol D'Orchestra
11. 8 Viole Celeste (TC)
12. 8 Stopped Diapason
13. 4 Flute Harmonic
14. 8 Cornopean
15. 8 Oboe
Tremolo
CHOIR
16. 8 Violin Diapason
17. 8 Concert Flute
18. 8 Dulciana
19. 4 Flute D'Amour
20. 8 Clarinet
Tremolo
ECHO
21. 8 Muted Viol
22. 8 Vox Humana
23. Chimes (1948 addition)
Tremolo
PEDAL
24. 16 Double Open Diapason
25. 16 Bourdon (#1)
26. 16 Lieblich Gedackt (#8)
27. 8 violon Cello (#4)

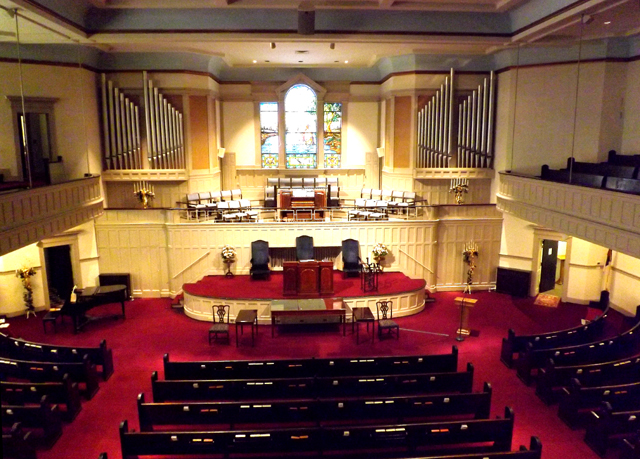

The organ was in chambers on both sides of a gallery above the pulpit and spoke into the nave. The Great and Choir (in same swell box) were on the left, Swell on the right. Echo organ was in the ceiling above the center of the room and played from the Swell manual. Replaced by Schantz.
Site visit by DT.
Schantz organ, 1989, Opus 1934, 3m/46r
GREAT
16 Violone 73 pipes
8 Principal 61 pipes
8 Rohrflote 61 pipes
8 Violone -----
4 Octave 62 pipes (sic)
4 Flauto Traverso 61 pipes
II Sesquialtera (TC) 98 pipes
2 Super Octave 61 pipes
IV Fourniture 244 pipes
8 Trumpet 61 pipes
Chimes (in Choir box)
8 Festival Trompette (Choir) -----
SWELL
16 Bourdon 73 pipes
8 Diapason 73 pipes
8 Bourdon -----
8 Viole de gambe 61 pipes
8 Viole Celeste 49 pipes
4 Prestant -----
4 Flute ouverte 61 pipes
2 2/3 Nazard 61 pipes
2 Flute a bec 61 pipes
1 3/5 Tierce 61 pipes
IV Plein Jeu 244 pipes
16 Basson-Hautbois 73 pipes
8 Trompette 73 pipes
8 Hautbois -----
4 Clairon -----
8 Voix Humaine 61 pipes
Tremulant
8 Festival Trompette (Choir) -----
CHOIR
8 Holzgedackt 61 pipes
8 Erzahler 61 pipes
8 Erzahler Celeste 49 pipes
4 Principal 61 pipes
4 Kopelflote 61 pipes
2 Gemshorn 61 pipes
1 1/3 Quinte 61 pipes
III Cymbale 183 pipes
8 Krummhorn 61 pipes
Tremulant
8 Festival Trompette 61 pipes
PEDAL
32 Resultant -----
16 Principal 44 pipes
16 Subbass 56 pipes
16 Bourdon (Swell) -----
16 violone (Great) -----
8 Octave (ext. Principal) -----
8 Flute (ext Subbass) -----
8 Bourdon (Swell) -----
8 violone (Great) -----
4 Choral Bass 32 pipes
4 Flute (Subbass) -----
II Mixture 64 pipes
II Actua 64 pipes
32 Grand Cornet -----
16 Posaune 56 pipes
16 Basson (Swell) -----
8 Trumpet (ext. Posaune) -----
4 Klarine (ext. Posaune) -----
COUPLERS
Swell to Great 16, 8 & 4; Choir to Great 16, 8 & 4; Swell to Choir 16, 8 & 4; Great to Pedal 8 & 4; Swell to Pedal 8 & 4; Choir to Pedal 8 & 4
PISTONS
Great 1-5; Swell 1-6; Choir 1-5; General 1-7 (thumb & toe); Swell to Pedal (thumb & toe); Great to Pedal (thumb & toe); Choir to Pedal (thumb & toe); Nave Shades Off (thumb & toe); Sforzando (thumb & toe); General Cancel; Pedal 1-5 (toe only)
Information from the dedication program, January 7, 1990 and site visit by DT, 12/31/92 |
